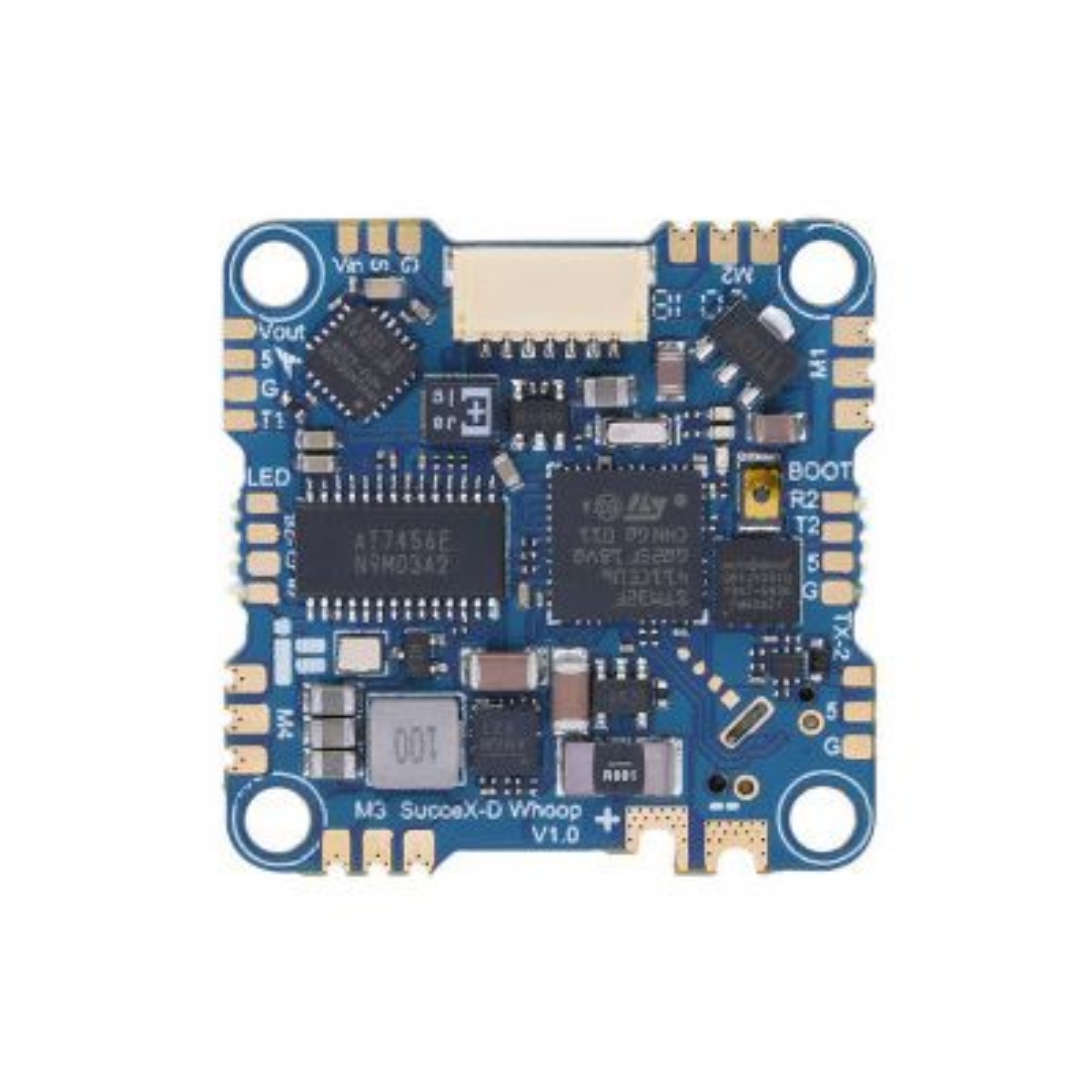

Whoop AIO F411

product Description

Specifications
Size：30.5*30.5mm

Mounting pattern：25.5*25.5mm/φ3mm

Weight: 7.5g

MCU：STM32F411

Gyro：BMI270

Blackbox：8MB

BEC output: 5V 2A

Config：IFLIGHT_F411_PRO.config

INA pad：nR2

Barometer：No

Constant current：20A，25A（Burst）

Input：2-4S

Current sensor：yes

BLHeli：BLHeli-S

ESC Telemetry：no

Firmware Target：IFLIGHT_F411_PRO

ESC Firmware: Bluejay Q-H-50

Packing List
SucceX-D Whoop V2 F4 AIO Board× 1

Capacitor 470uF/16V × 1

XT30 18awg cable

Wire harness (plug&play) for DJI Air Unit × 1

M2 silicon grommets × 4

M2 damping balls x 4

M2*8mm Screws x 4
