E-power 35KG coreless Servo Waterproof High Speed Magnetic Servo

E-power 35KG coreless Servo Waterproof High Speed Magnetic Servo RC Car UAV

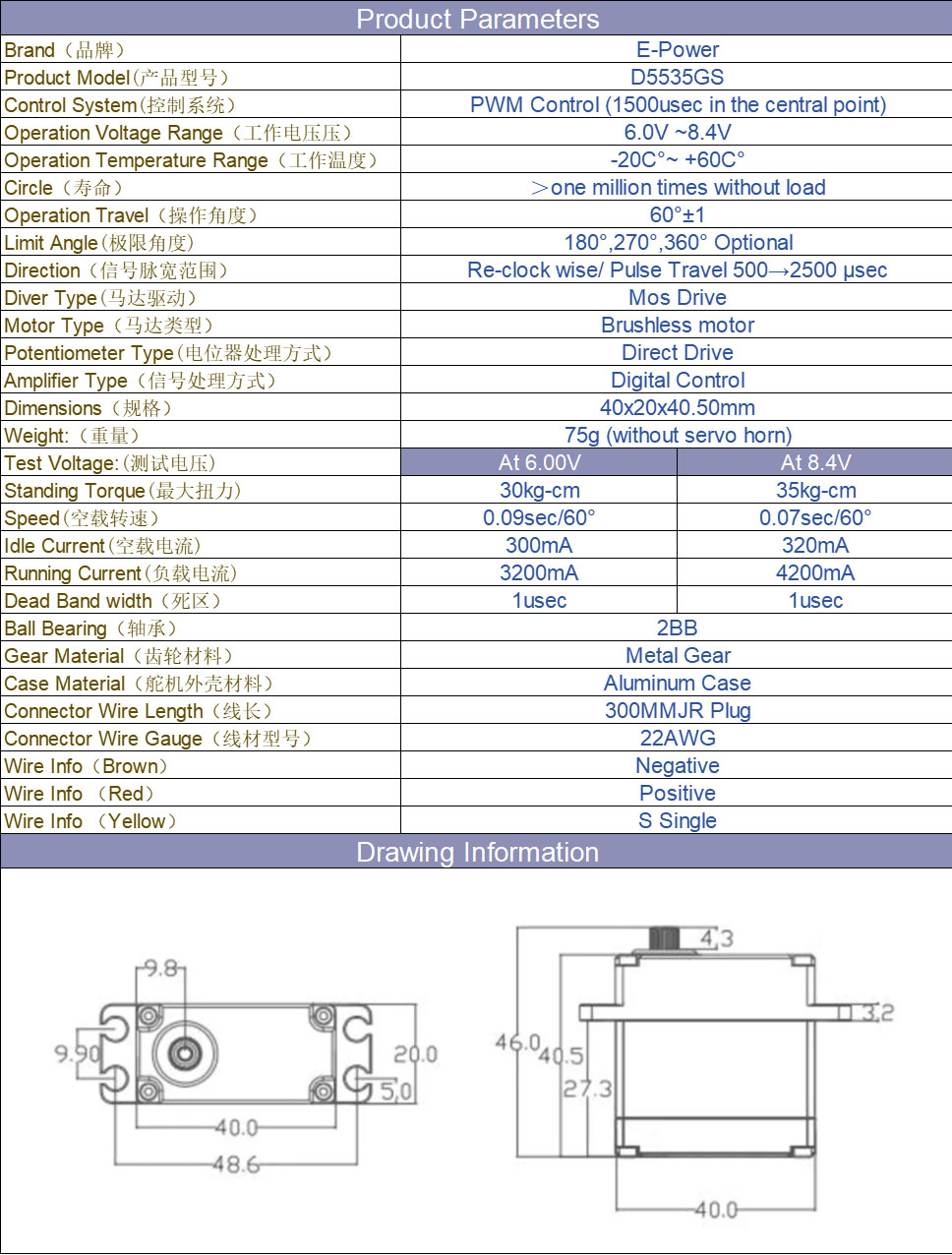

Specifications:

Brand:  E-power

Model:  D5535GS

Ball Bearing:  2BB

Diver type:  Mos Drive

Motor Type:  Brushless motor

Potentiometer Type:  Direct Drive

Amplifier Type:  Digital Control

Dead band width:  1 usec

Gear Material:  Metal Gear

Case Material:  Aluminum Case

Operation Voltage Range:  6.0V ~8.4V

Operation Temperature Range:  -20C°~ +60C°

Control Angle:  180°/270°/360° Optional

Direction:  Re-clock wise/ Pulse Travel 500→2500 μsec

Control System:  PWM Control (1500usec in the central point)

Circle:  ＞100 milion times without load

Operation Travel:  60°±1

Limit angle:  180°± 1

Dimensions:  40x20x40.50mm

Weight:  75g (without servo horn)

Standing Torque:  0.09sec/60°,30kg-cm-@6.00V ;0.07sec/60°,35kg-cm-@7.4V

Idle Current:  300mA-@6.00V ; 320mA-@7.4V

Running Current:  3200mA-@6.00V ; 4200mA-@7.4V

Connector Wire Length: 300MMJR Plug

Connector Wire Gauge:  22AWG

Wire Info (Brown):  Negative

Wire Info (Red):  Positive

Wire Info (Yellow):  S Sinqle
