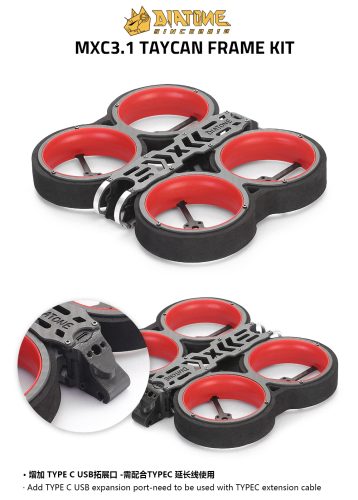

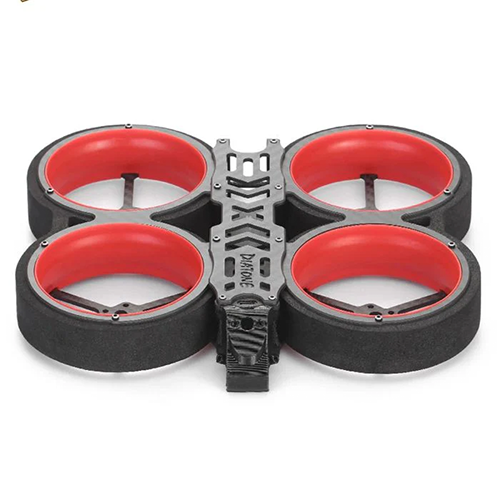

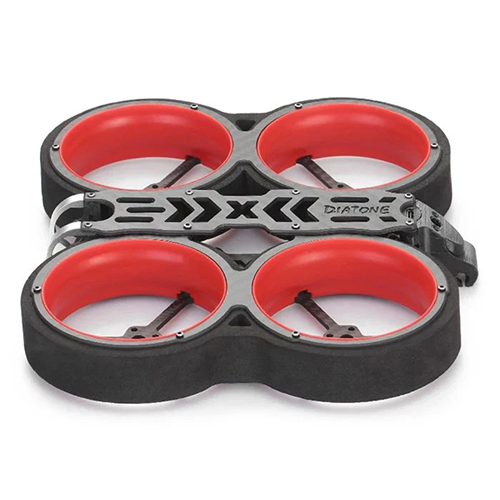

Diatone Taycan MXC3.1 3″ Cinewhoop Frame Kit w/ Red Ducts

The Diatone MXC3.1 Frame Kit is a high-performance 3″ frame with red ducts!

Experience amazing footage with this powerful and agile 3″ Cinewhoop! Diatone’s latest creation features a custom frame designed just for the DJI Digital HD FPV System.

VIDEO: How to Build a Cinewhoop Drone to take Cinematic FPV Shots

Features

Designed to house the DJI Digital HD FPV System
Red Ducts

Specifications

FC Mounting Patterns: 20×20mm (M2) / 25.5×25.5mm (M2) / 30.5×30.5mm (M3）
Rated Voltage (Recommendation): 4S~6S
Model: MXC3.1 (Taycan C3 V1.1)
Motor Mounting:16mm (M3)
Bai Aluminum alloy：7075
Carbon Fiber: T300 3K
Camera Spacing:19mm
Wheelbase: 157.5mm
Bottom Plate:2.5mm
Duct Color: Red
Top Plate:2mm
Weight: 158g
Prop Size: 3″
Arm: 2.5mm

Recommended (Not Included)

Camera:/ VTX: Caddx DJI Digital HD FPV Air Unit Kit
Motor: MAMBA TOKA 2203.5 2650 KV
FC: MAMBA AIO F411 35A / 20MM
Antenna: MAMBA ULTRA LHCP
6S Battery: 850-1050 mAh

Includes

1x Mamba Micro USB/ Micro USB V2 Adapter
1x SMA Antenna Fixing Screw Set
4x Red Ducts with Foam Bumpers
1x 20 to 25.5 Aluminum Adapter
1x Micro USB Extender
1x USB-C Extender
2x Camera Plates
1x TPU Parts Set
1x Hardware Set
1x Standoffs Set
1x Set of Zipties
1x Bottom Plate
2x Motor Plates
1x Battery Pad
2x LiPo Strap
1x Top Plate
