Product Description
Description
Jumper R1 V2 Mini 2.4GHz 16CH Over 2KM D16 SBUS Full Range RC Receiver Compatible T-Lite T18 T16 T12 T8SG Radio Transmitter for RC Drone

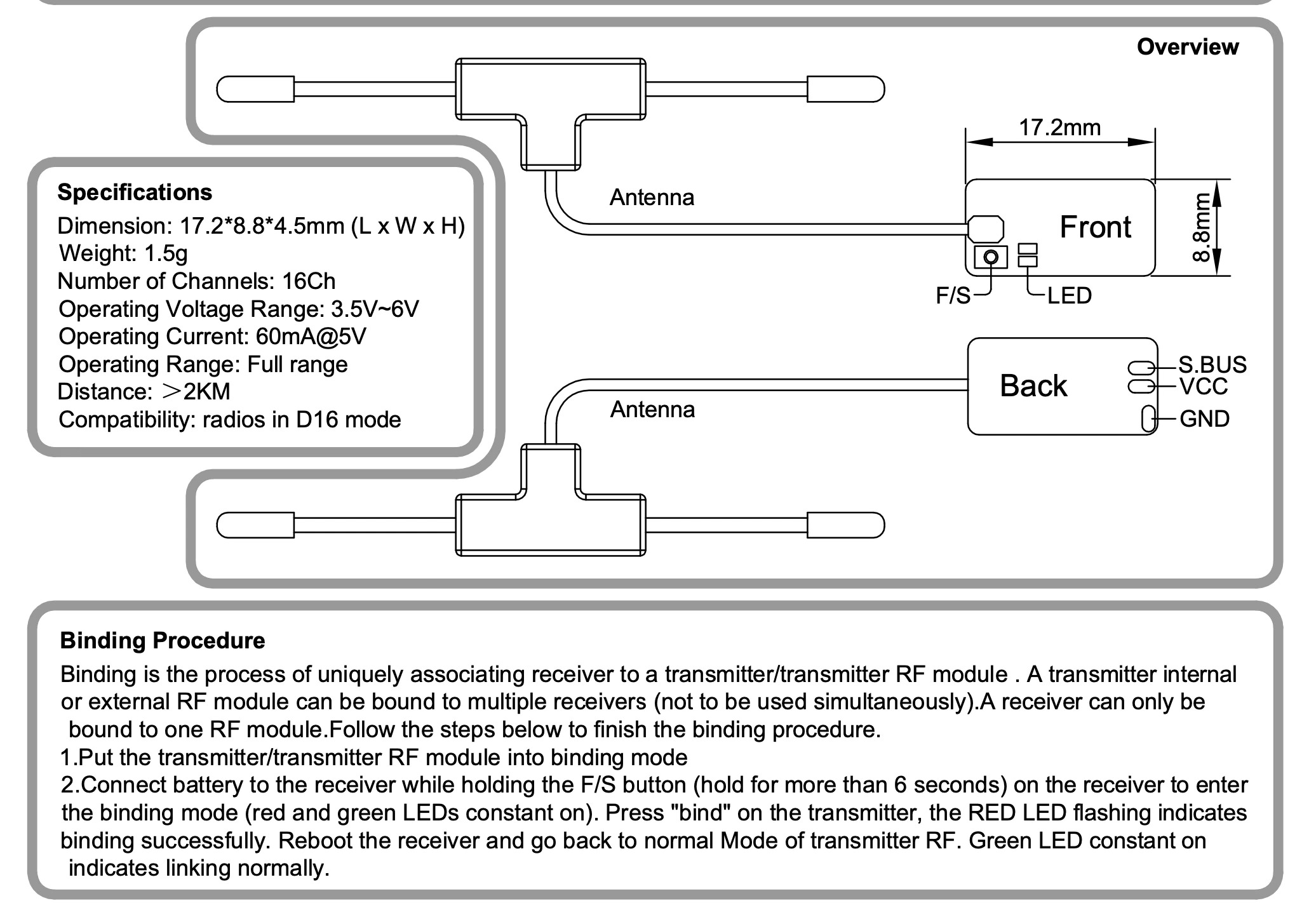

Specifications:
Brand Name: Jumper
Item Name: R1 V2 Mini RC Receiver
Model: R1 V2 Mini
Dimension: 17.2*8.8*4.5mm (L x W x H)
Weight: 1.5g
Number of Channels: 16Ch
Operating Voltage Range: 3.5V—6V
Operating Current: 60mA@5V
Operating Range: Full range
Distance: >2KM
Compatibility: radios in D16 mode
Binding Procedure:
Binding is the process of uniquely associating receiver to a transmitter/transmitter RF module . A transmitter internal or external RF module can be bound to multiple receivers (not to be used simultaneously).A receiver can only be bound to one RF module.Follow the steps below to finish the binding procedure.
– Put the transmitter/transmitter RF module into binding mode
– Connect battery to the receiver while holding the F/S button (hold for more than 6 seconds) on the receiver to enter the binding mode (red and green LEDs constant on). Press “bind” on the transmitter, the RED LED flashing indicates binding successfully. Reboot the receiver and go back to normal Mode of transmitter RF. Green LED constant on indicates linking normally.
Package Included:
1 x R1 V2 Mini RC Receiver
1 x Manual
